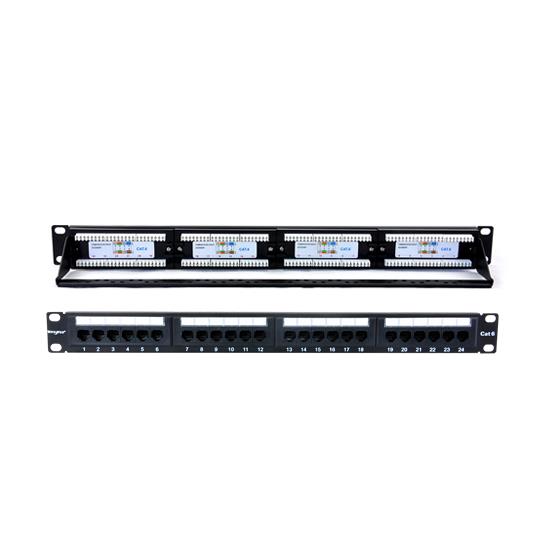

Cat6 UTP patch panel

Model:TF-P-0624/TF-P-0648

1.Conform to the standard:

Meet to ISO/IEC11801, TIA/EIA568C, YD/T926.3-2009 standard

2.Electrical Test:

a. Frequency range:0~250MHz

b. Insulation Resistance: The initial≥100MΩ; Constant temperature after test≥100MΩ

3.Mechanical:

a. Insertion force≤20N, Pullout force≥20N

b. The effect of the connector connecting device:50N 60±5s

4.The durability:

a. The number of plug and socket inserted:1000times

b. Wire termination:250times

5.Material & Finish

a. Metal material:

metal plate:metal stand,spraying plastics,black

IDC lineup terminal:Phosphor bronze plating nickel, wire diameter 0.45~0.6mm copper wire.

b. Non-metallic materials:

Plastics:RJ45 socket module use PBT engineering plastics,PC polycarbonate

c. Gold-plated layer thickness:50μ(inch)

Applied to the cabling connection for equipment and horizontal cabling system
